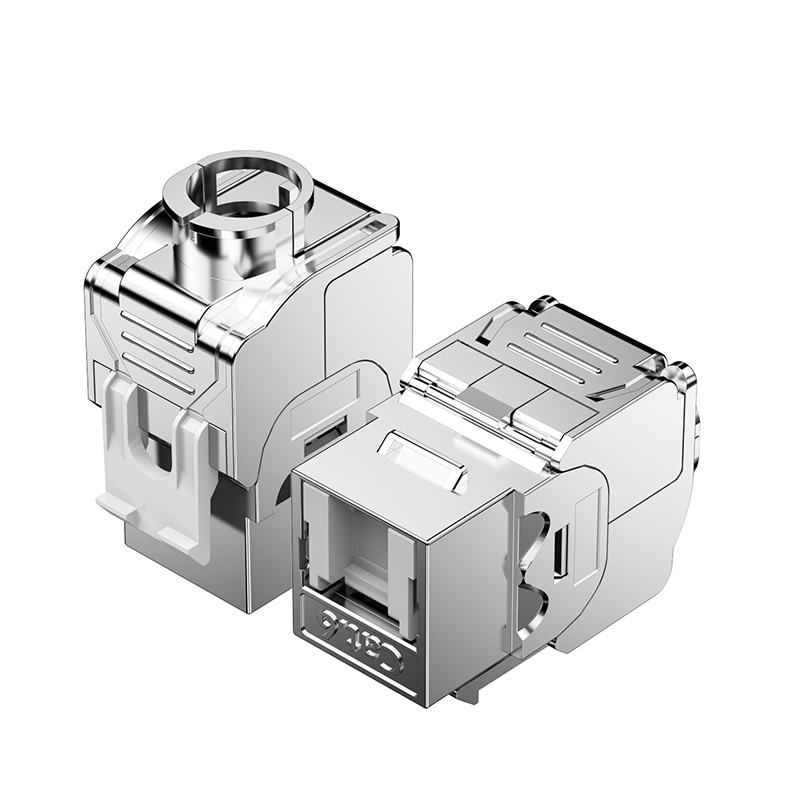

FTP Toolless keystone jack 180 degree with internal flip shutter
Classification:
|
Place of Origin: |
Zhejiang, China |
|
Model Number: |
HKJ-803FM-D03 |
|
Certification: |
CE, ISO, RoHS |
|
Category： |
|
|
Service: |
|
|
Other: |
|
Tel
Product general information:
|
Place of Origin: |
Zhejiang, China |
|
Brand Name: |
HY-CONNECT |
|
Model Number: |
HKJ-803FM-D03 |
|
Certification: |
CE, ISO, RoHS |
Commercial terms of products:
|
Minimum Order Quantity: |
200 |
|
Category: |
180° FTP |
|
Packaging Details: |
1PC/Bag, 50bag/Box, 10box/Carton |
|
Delivery Time: |
7-15(days) |
|
Payment Terms: |
|
|
Supply Ability: |
10000 pieces per Day |
Description：
Material of plastic parts: zinc alloy·Standard 110 and LSA dual use punching tool make operation more convenient

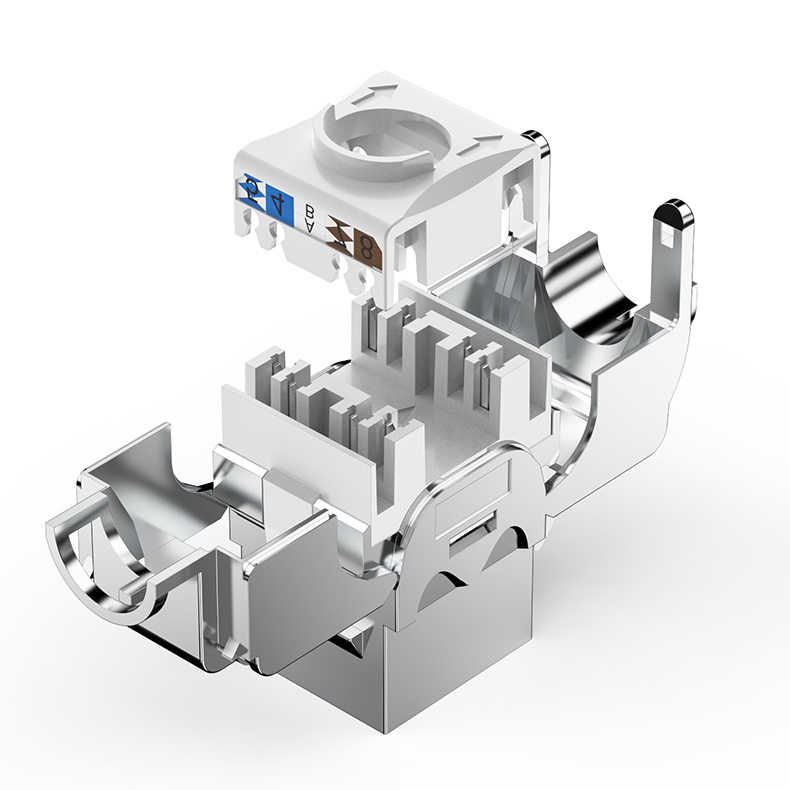

· IDC clips with 180 degree angled design ensure the cables reliable connection
· According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6
· Golden plated Pins, IDC clips and internal PCB board match well and provide best performance
· Whole Pin nickel plated with connect pins golden plated 6μ prevent oxidation, lasting the service life
· IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times

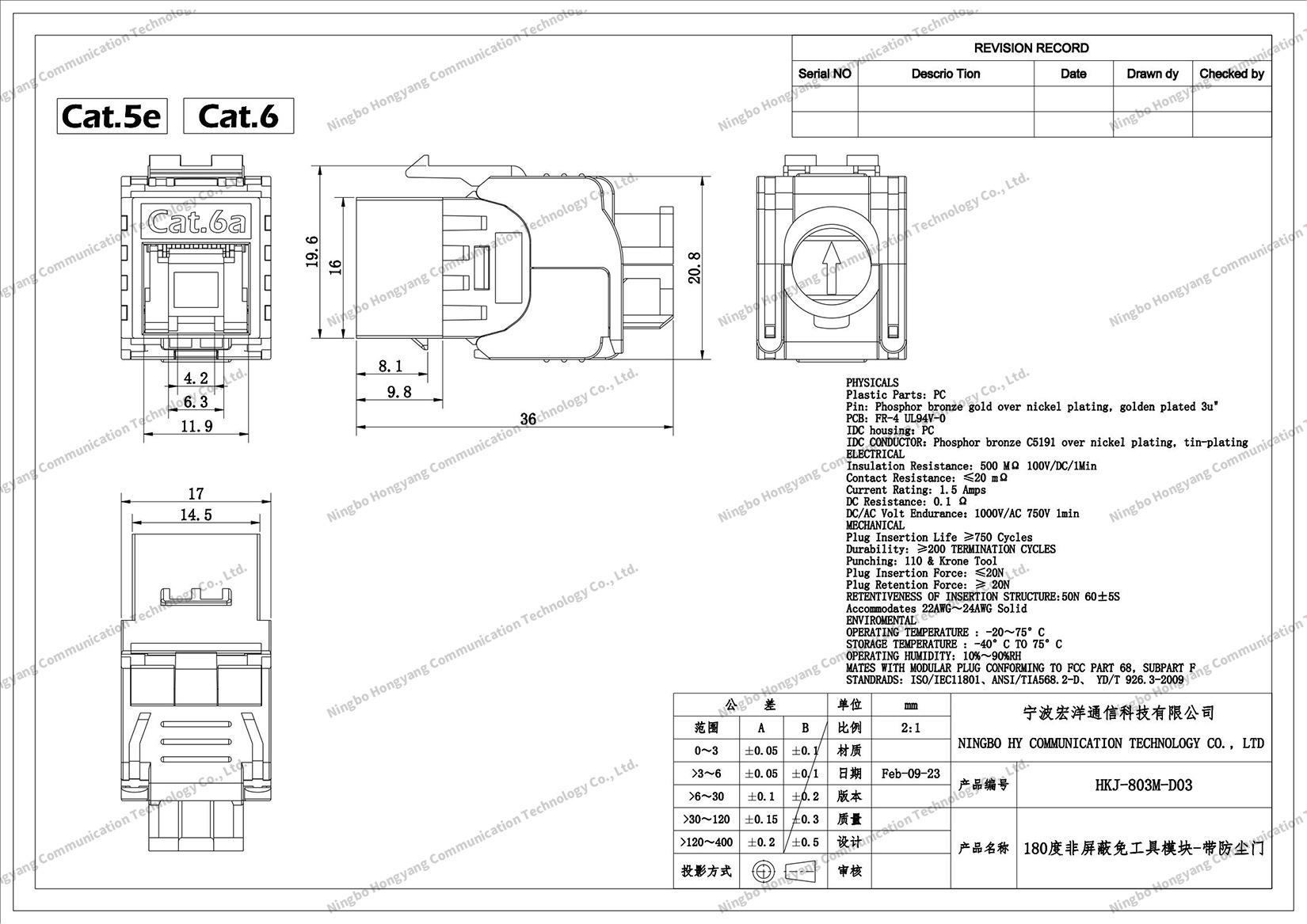

Specifications：
|
ElectricalCharacteristics · DCResistance: ≤300mΩ · ContactResistance: ≤20mΩ · Dielectricstrength: 1000V(AC750V)1min · InsulationResistance: ≥1000MΩ |
|
PhysicalCharacteristics · Phosphor bronzewith nickel plated , connector pins with golden plated 6μ · IDC clip:Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables · InsertingDuration: ≥750 times · PunchingDuration: ≥250 times · Jack housingplastic part: UL 94V-0,RED,YELLOW,BLUE,GREEN,BLACK and other colors available · Terminationcaps material UL94V -0 · Workingtemperature: -25ºC~60ºC |
|
Standards · ISO/IEC11801 · TIA/EIA-568B.2-1 · EN50173 · UL 94V-0 |
|
Application · Structuredcabling transmitting data ,voice, video · Applied forCat.6 and E Classes · Suitable forworking area, central room, managing room, equipment room and subsystemapplications |
Quick Detail:
1.Keyston jack. Modular jack
2.Data center, working area, managing room , equipment room , etc
3.RJ45 available
Applications:
Network
Specifications:
|
ModelNumber |
HKJ-803FM-D03 |
|
Material |
zinc alloy |
|
gold plated |
3u"-50u" |
