UTP toolless modular plug
Classification:
|
Place of Origin: |
Zhejiang, China |
|
Model Number: |
HRJ-P88-E |
|
Certification: |
CE, ISO, RoHS |
|
Category： |
|
|
Service: |
|
|
Other: |
|
Tel
Product general information:
|
Place of Origin: |
Zhejiang, China |
|
Brand Name: |
HY-CONNECT |
|
Model Number: |
HRJ-P88-E |
|
Certification: |
CE, ISO, RoHS |
Commercial terms of products:
|
Minimum Order Quantity: |
2000 |
|
Category: |
UTP |
|
Packaging Details: |
100pc/pe bag, 10000pcs/ctn |
|
Delivery Time: |
7-15(days) |
|
Payment Terms: |
|
|
Supply Ability: |
10000 pieces per Day |
Description：
|
product name |
RJ45 tool-less shielded modular plug |
|
Material |
PC UL94V-0 |
|
port |
RJ45 available |
|
category |
Category 5e/Category6/Category 6a |
|

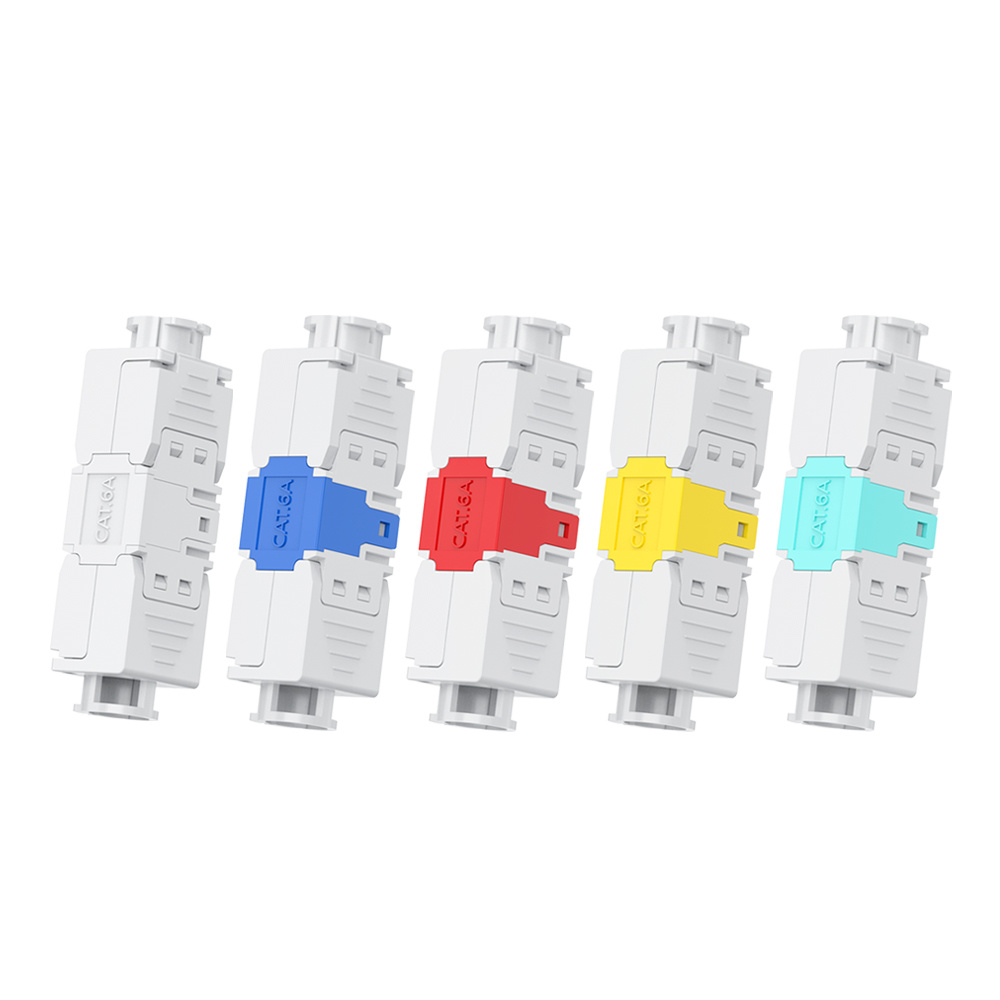

color |
White, red, yellow,blue |
|
gold plated |
3u "-50u" |
|
standard |
InternationalOrganization for Standardization/IEC11801, TIA/EIA-568B.2-1, EN50173 |
|
Used |
Data center, workarea, management room, equipment room, etc. |
Specifications：
|
electric |
* UL Application: Maximum AC 250V,2Amp * Dielectric constant: 500V AC * Insulation resistance: 250MΩ * Terminal: Resistance 20m max. |
|
mechanical |
* Cable to plug tensorstrength: 20kg min* Durability: 200 fit cycles |
|
Materials and finishes |
* Enclosure: Polycarbonate, UL94V-0 or UL 94V-2 * Color: transparent or othercolors * Contact blade: Phosphor bronze * Conductor: Stranded and solidwire, 24AWG, 26AWG * Gold plating: 3U "-50U"available |
|
feature |
1. Speed termination without anytools 2. Ultra-thin design compatiblewith all standard ladder jacks and patch panels 3. The plug cap screw grooveprevents the cable from falling off 4. Crocodile 180-degree wiringstyle, easy and quick installation 5. The wiring cap color codingmatches the base color coding for easy identification. Unshielded andshielded can be used with this modular jack. |
Quick Detail:
1. plug
2. Data center, working area, managing room , equipment room , etc
3. 3u "-50u" RJ45 available
Applications:
Network
Specifications:
|
ModelNumber |
HRJ-P88-E |
|
Material |
PC UL94V-0 |
|
gold plated |
3u "-50u" |
