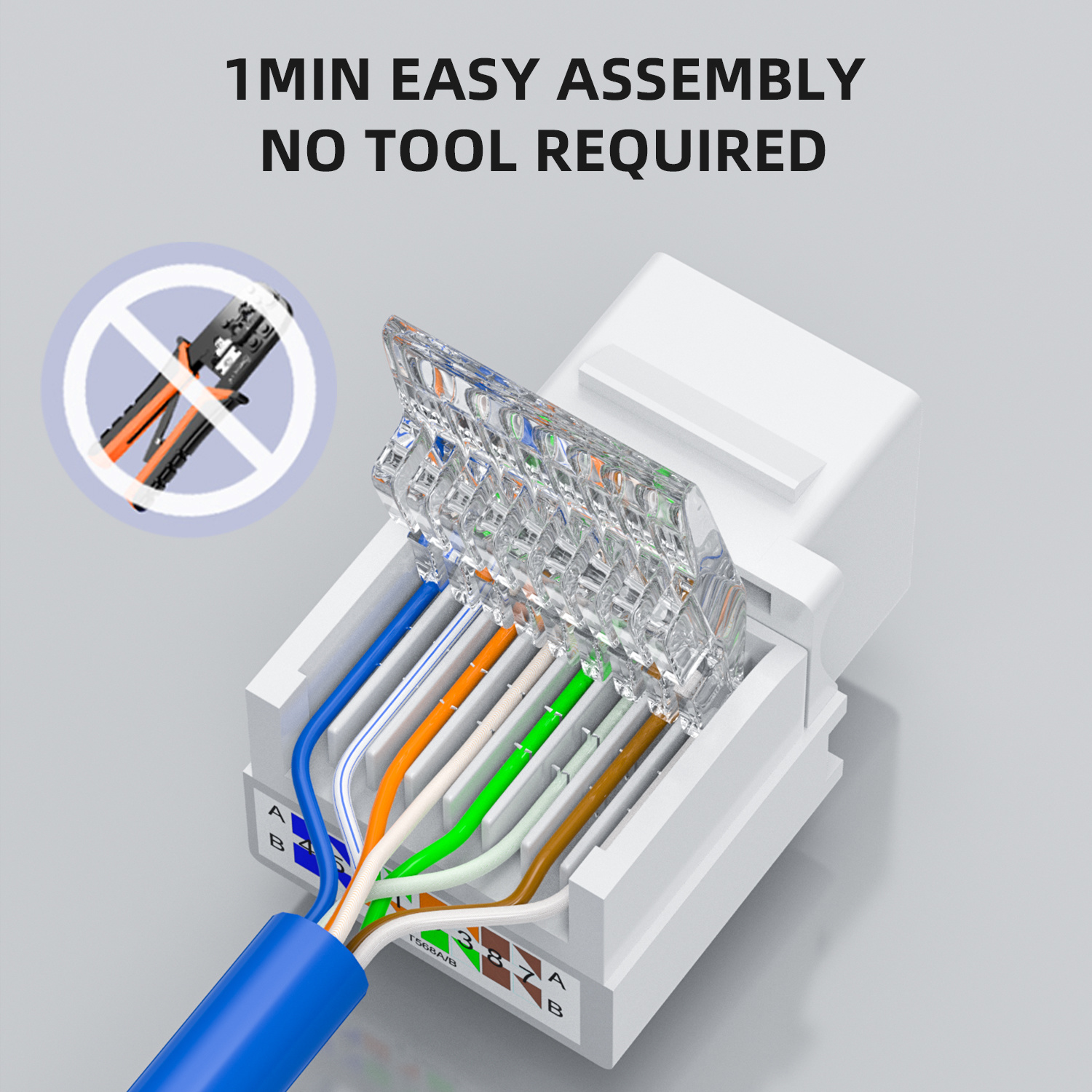

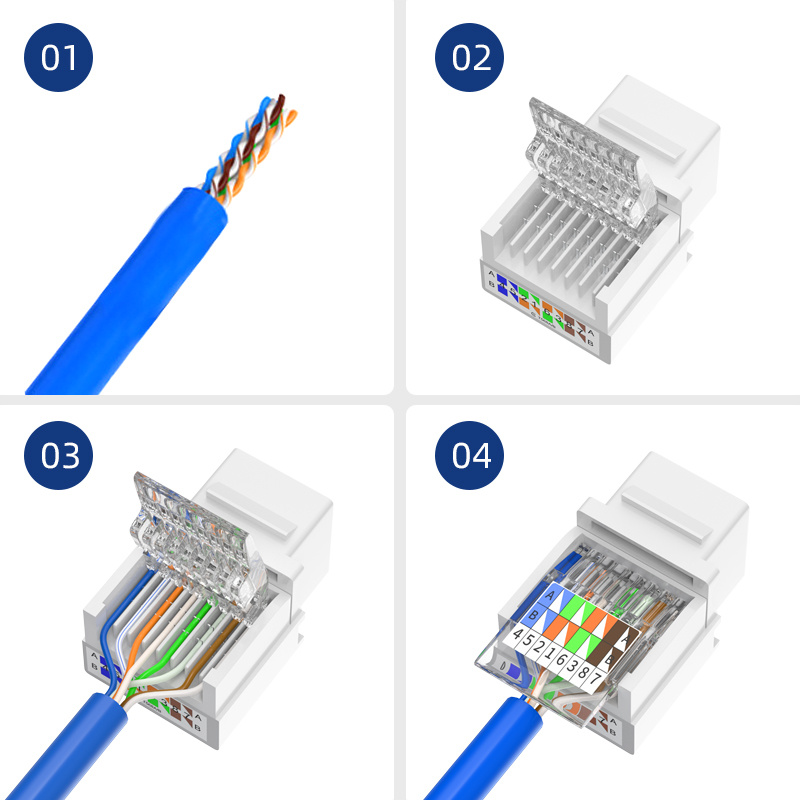

UTP keystone jack 90 degree Toolless
Classification:
|
Place of Origin: |
Zhejiang, China |
|
Model Number: |
HKJ-901M |
|
Certification: |
CE, ISO, RoHS |
|
Category： |
|
|
Service: |
|
|
Other: |
Tel
Product general information:
|
Place of Origin: |
Zhejiang, China |
|
Brand Name: |
HY-CONNECT |
|
Model Number: |
HKJ-901M |
|
Certification: |
CE, ISO, RoHS |
Commercial terms of products:
|
Minimum Order Quantity: |
200 |
|
Category: |
90° UTP |
|
Packaging Details: |
1pc/PE bag, 100bags/box, 10box/carton NeutralPE bag, box, and export carton |
|
Delivery Time: |
7-15(days) |
|
Payment Terms: |
|
|
Supply Ability: |
10000 pieces per Day |
Description：
|
product name |

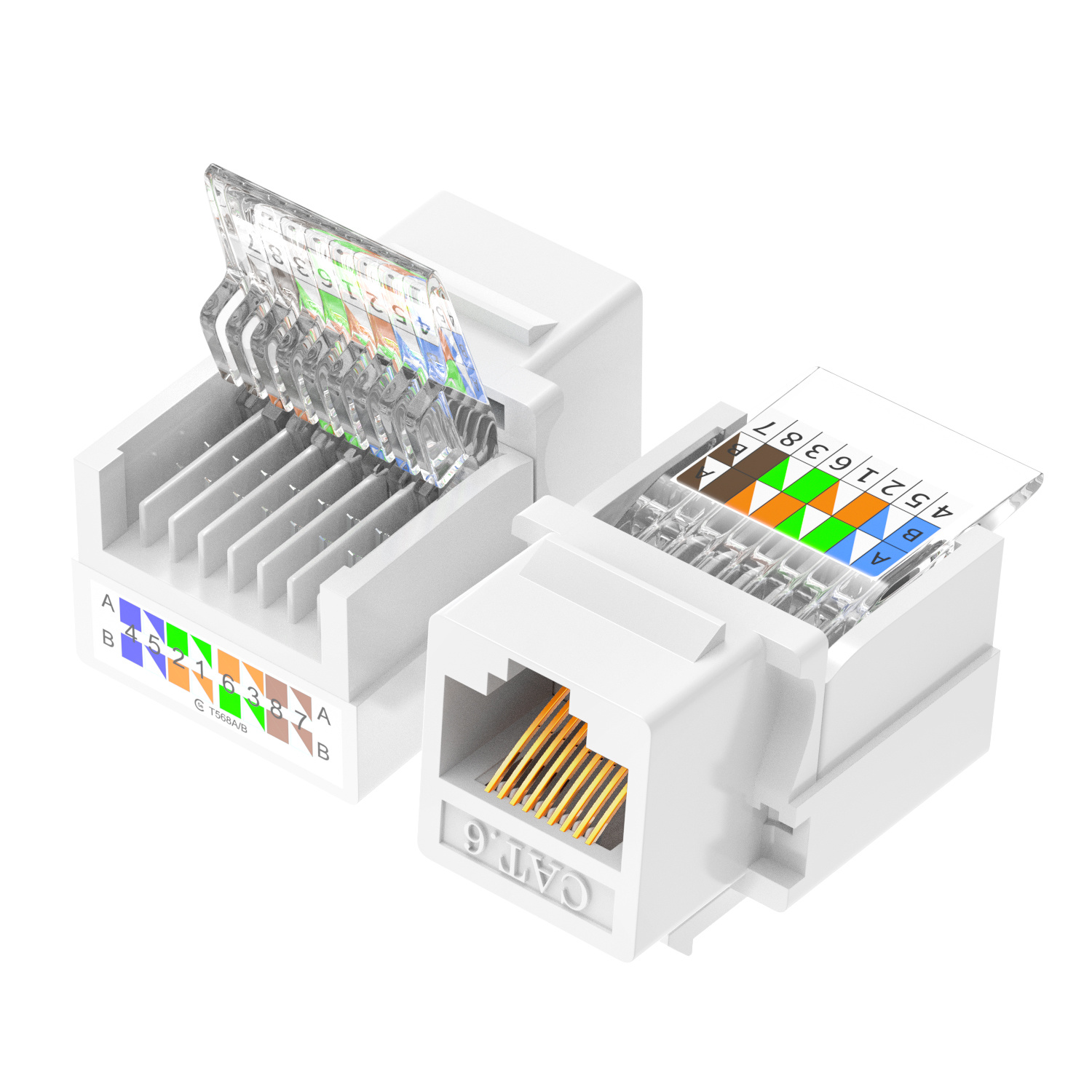

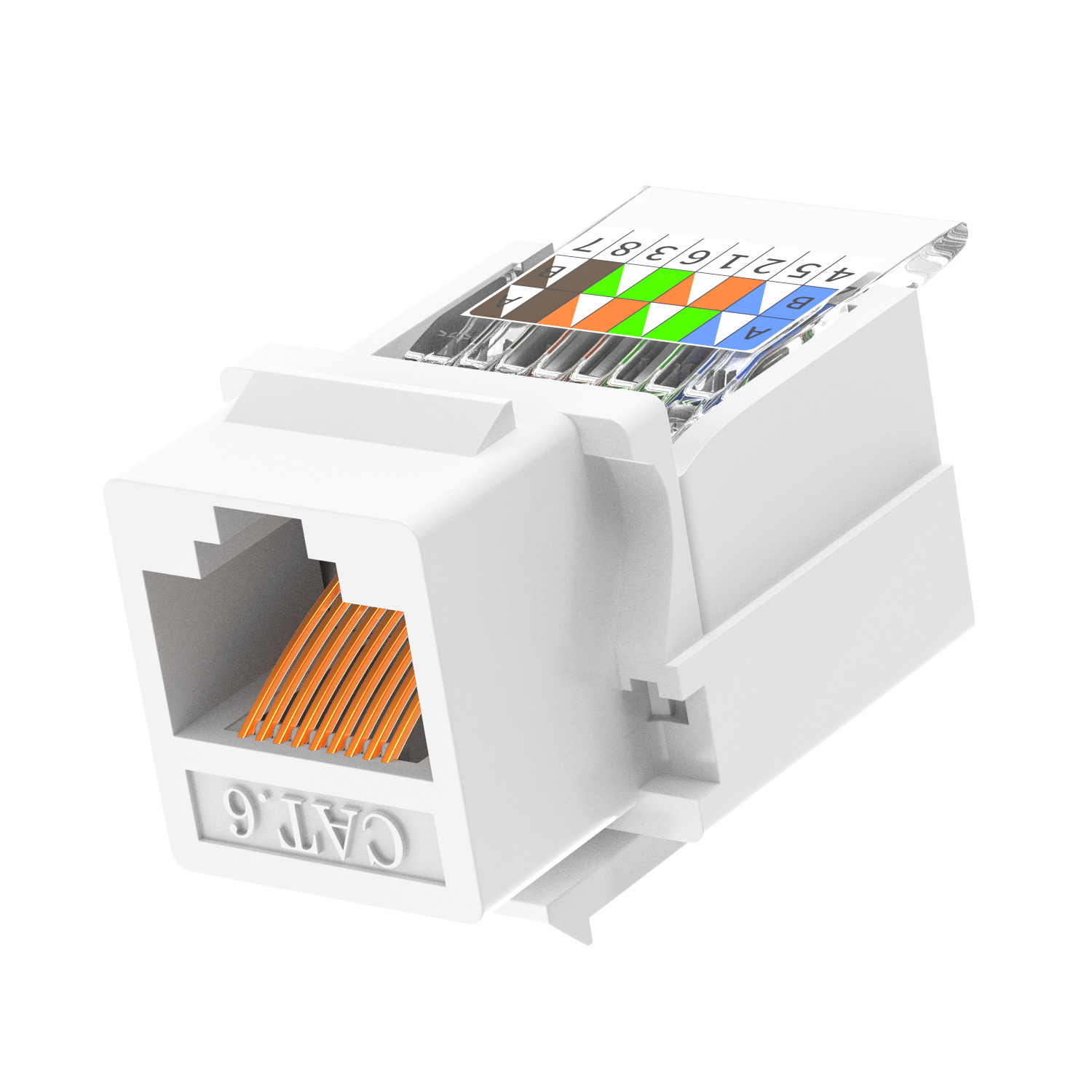

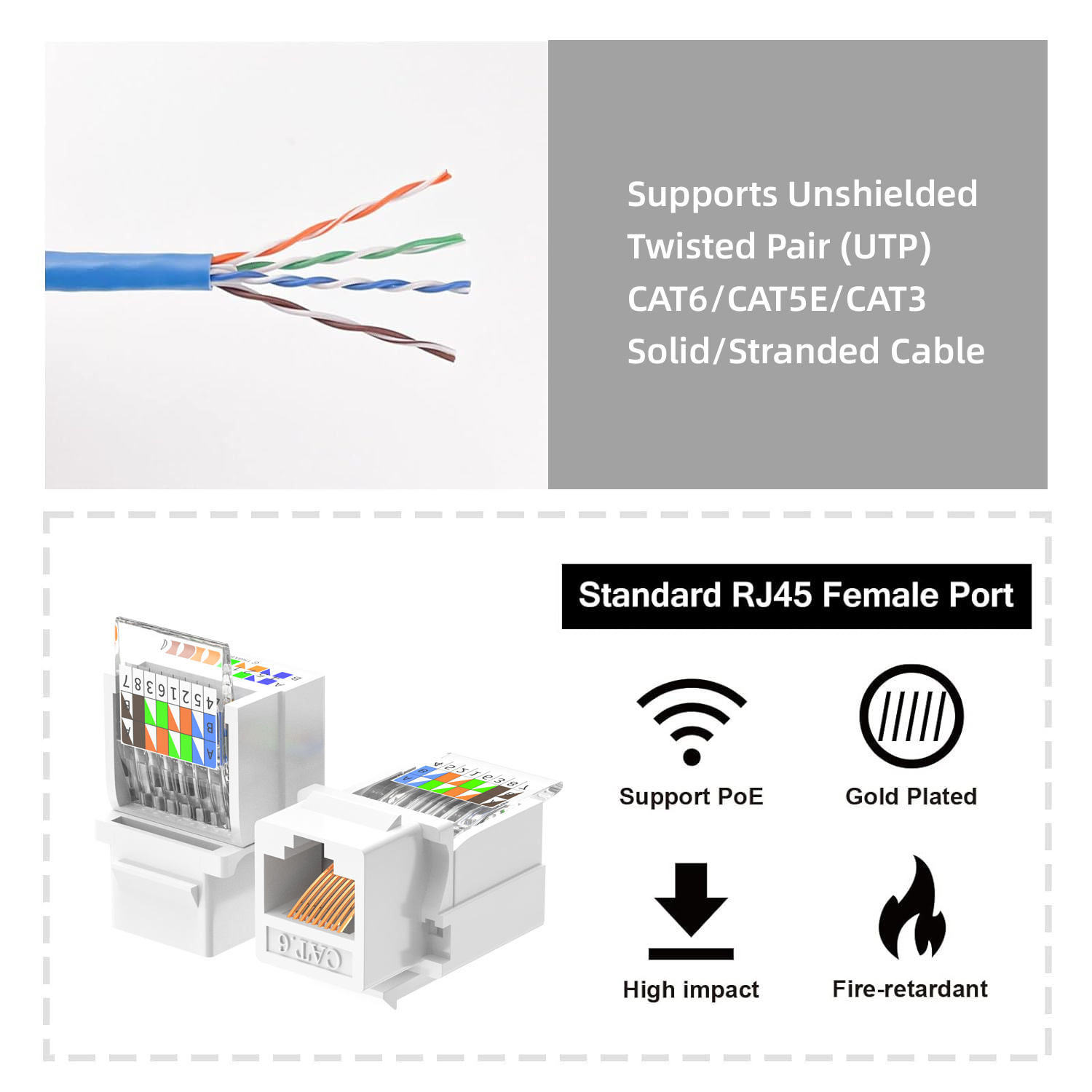

Wholesale network 90degree toolless UTP rj45 category 6 keystone jack |
|
Material |
PC UL94V-0 |
|
port |
RJ45 available |
|
category |

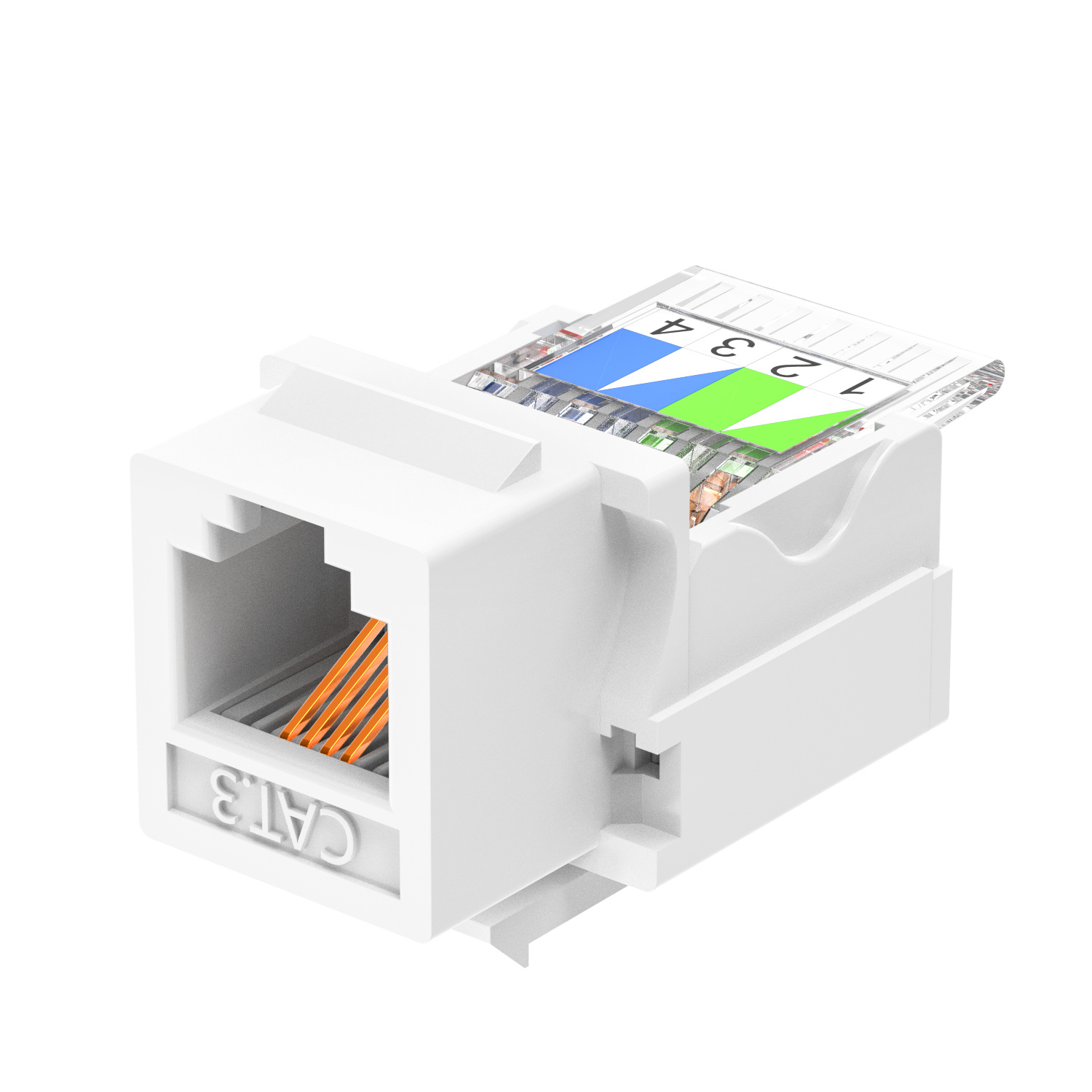

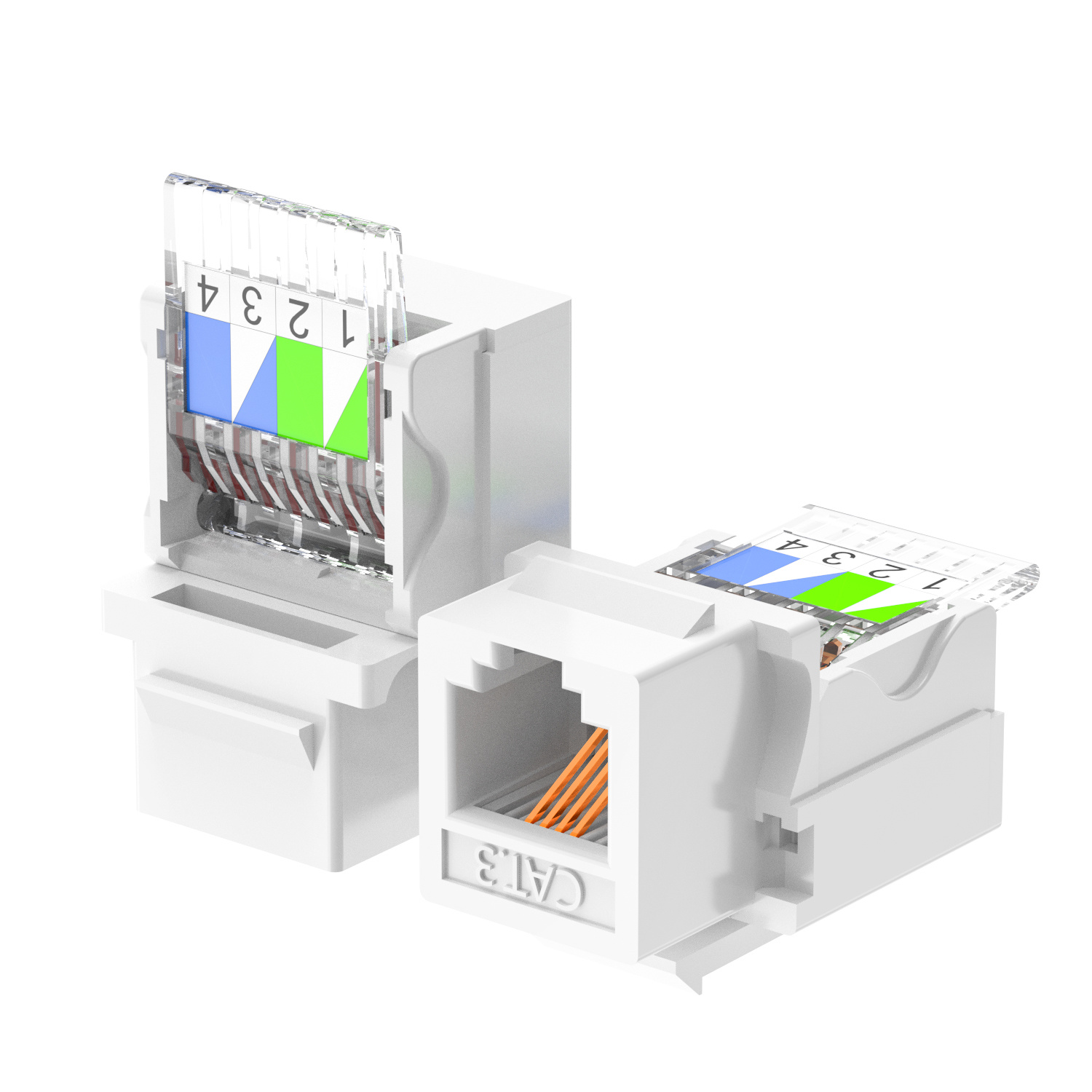

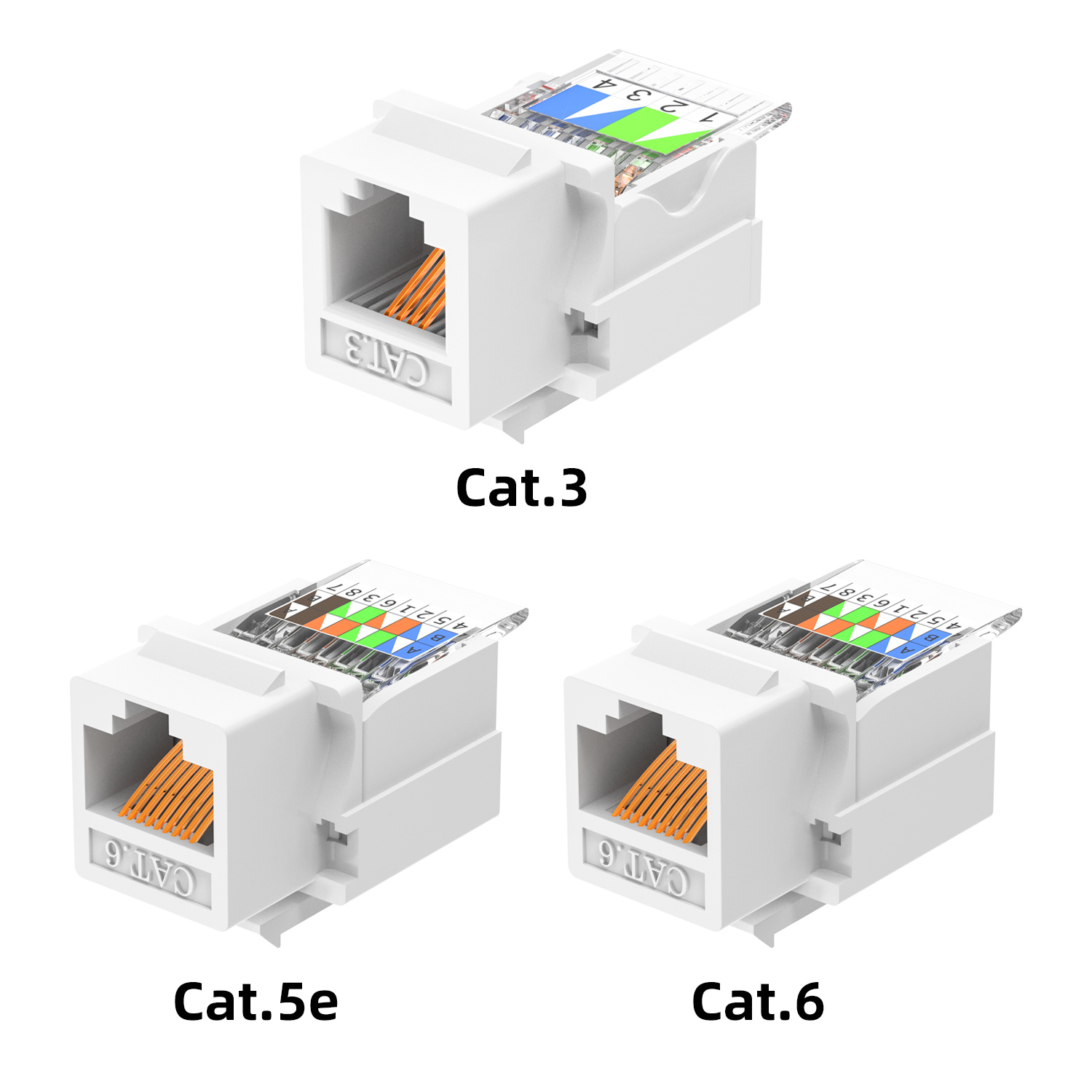

Available in Category 3/5e/6 |
|
color |
white |
|

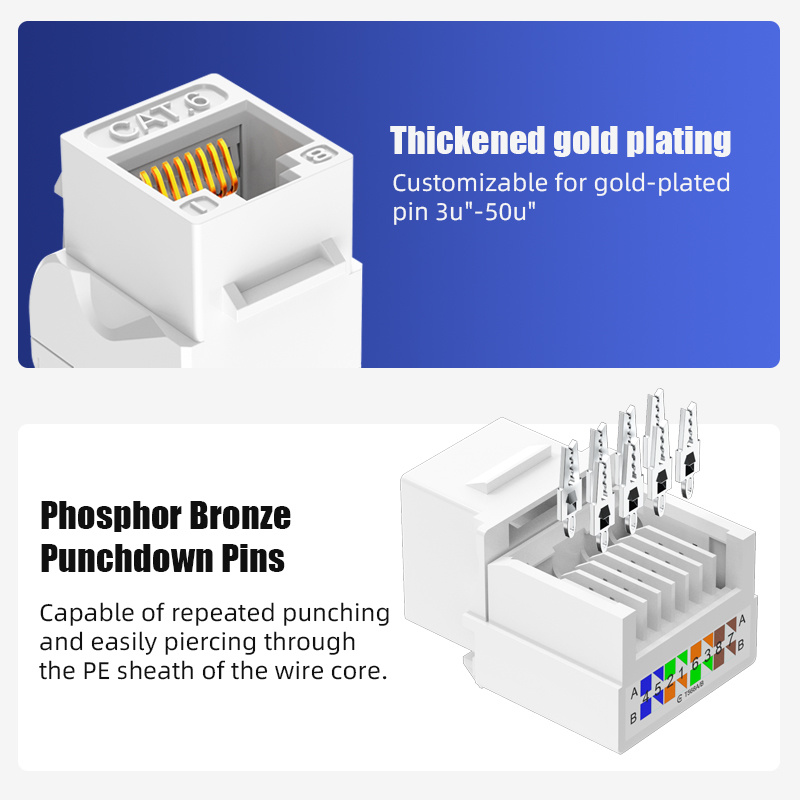

gold plated |
3u "-50u" |
|
standard |
International Organization forStandardization/IEC11801, TIA/EIA-568B.2-1, EN50173 |
|
Used |
Data center, work area, management room, equipmentroom, etc. |
Specifications：
|
Technical characteristics |
Plastic parts material: ComputerUL94V-0 • Standard 110 and LSA dual-purposepunching tools make operation more convenientThe IDC clamp designed with a45-degree angle ensures reliable cable connection • According to ISO/IEC 11801 andTIA/EIA 568-B.2 Cat.6A standardsGold plated pins, IDC clips andinternal PCB match well and provide optimal performance • The entire pin is nickel-plated,and the connecting pin is gold-plated to prevent oxidation and have a longservice life. • IDC clip: Tin-plated phosphorbronze and nickel-plated, 250 times more reliable |
|
Electrical characteristics |
DC resistance: ≤ 300mΩ Contact resistance: ≤ 20mΩ • Dielectric strength: 1000V(AC750V)1min Insulation resistance: ≥ 1000MΩ |
|
physical characteristics |
Nickel-plated phosphor bronze, gold-platedconnector pins IDC Clamp: Nickel plated tin platedphosphor bronze pins, suitable for 22-26awg cable • Insertion duration: ≥ 750 times • Punching duration: ≥ 250 times • Jack housing plastic parts: UL94V-2, red, yellow, blue, green, black and other colors availableTermination cap material UL94V-2Working temperature: -25 ℃ ~ 60 ℃ |
|
standard |
International Organization forStandardization/IEC11801 TIA/EIA-568B.2-1; • EN50173; • UL 94V-0; |
|
application |
Structured cabling for transmittingdata, voice, and video Applying for category 6a and lowerlevels Suitable for work areas, centralrooms, management rooms, equipment rooms and subsystem applications |
Quick Detail:
1.Keyston jack. Modular jack
2.Data center, working area, managing room , equipment room , etc
3. RJ45 available
Applications:
Network
Specifications:
|
ModelNumber |
HKJ-901m |
|
Material |
PC UL94V-0 |
|
gold plated |
3u"-50u" |
Competitive Advantage:
1.More than 10 years OEM manufacturing experience
2.Implement industry 4.0 across our manufacturing process
3.100% self-design patent product for major category
4.Established more than 45 world-wide selling networks in 5 years
5.On-line and off-line marketing service
