UTP keystone jack 180 degree
Basic Data of UTP Cat.6 Patch Panel 24 Port with Lock Type CableManager
Classification:
Place of Origin: |
Zhejiang, China |
Model Number: |
HKJ-801 |
Certification: |
CE, ISO, ROHS |
Category: |
C5E/C6/C6A |
Service: |
OEM/ODM/Neutral Products |
Other: |
Supports Customization |
Tel
Product general information:
Place of Origin: |
Zhejiang, China |
Brand Name: |
HY-CONNECT |
Model Number: |
HKJ-801 |
Certification: |
CE, ISO, ROHS |
Commercial terms of products:
Minimum Order Quantity: |
200 |
Category: |
180° UTP |
Packaging Details: |
1pc/PE bag, 50pcs/box, 10box/carton |
Delivery Time: |
7-15(days) |
Payment Terms: |
Negotiable |
Supply Ability: |
10000 pieces per Day |
Description:
Product name |
Wholesale network 180degree UTP rj45 category 6 keystone jack |
Material |
PC UL94V-0 |
Port |
RJ45 available |
Category |
Available in Category 5E/6/6A |

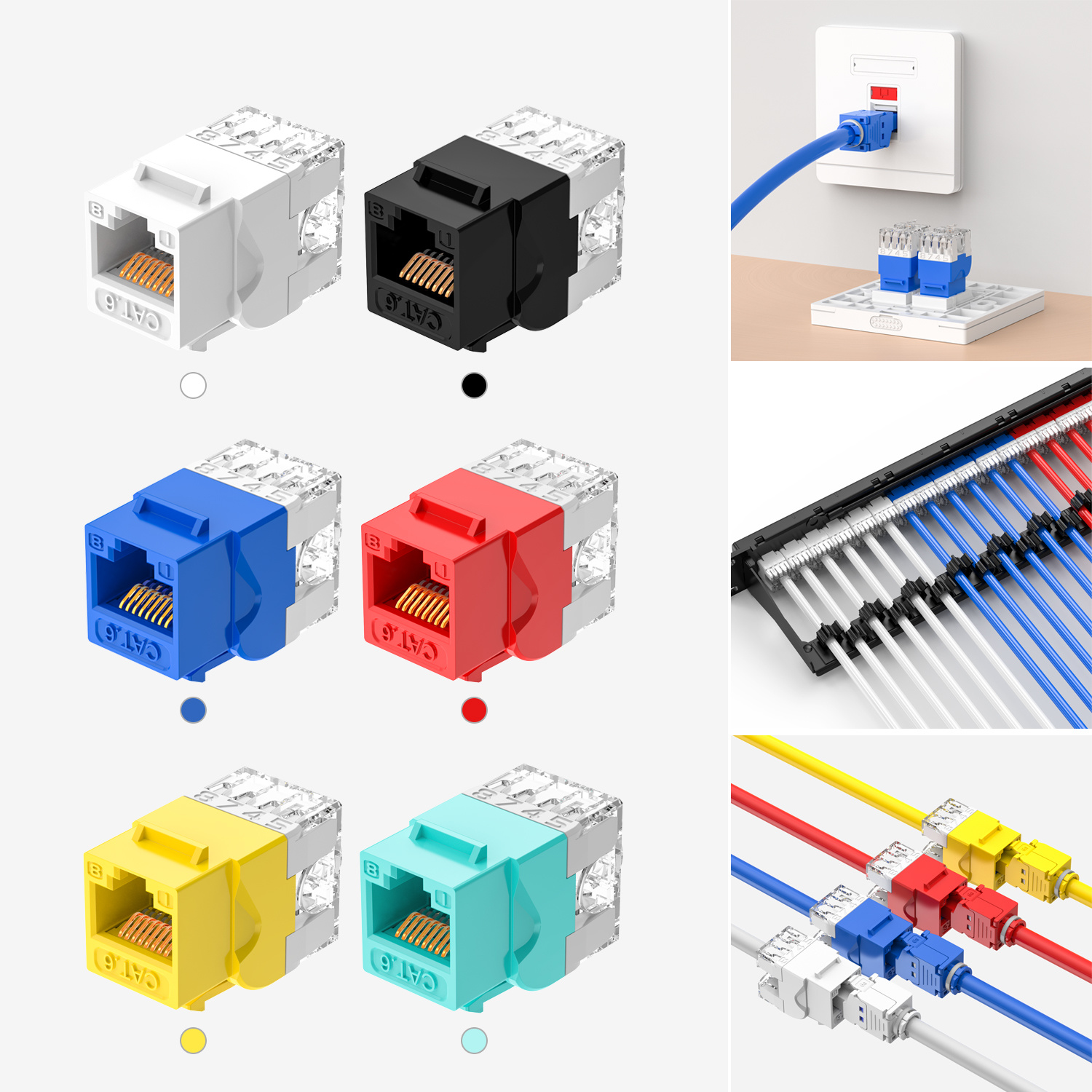

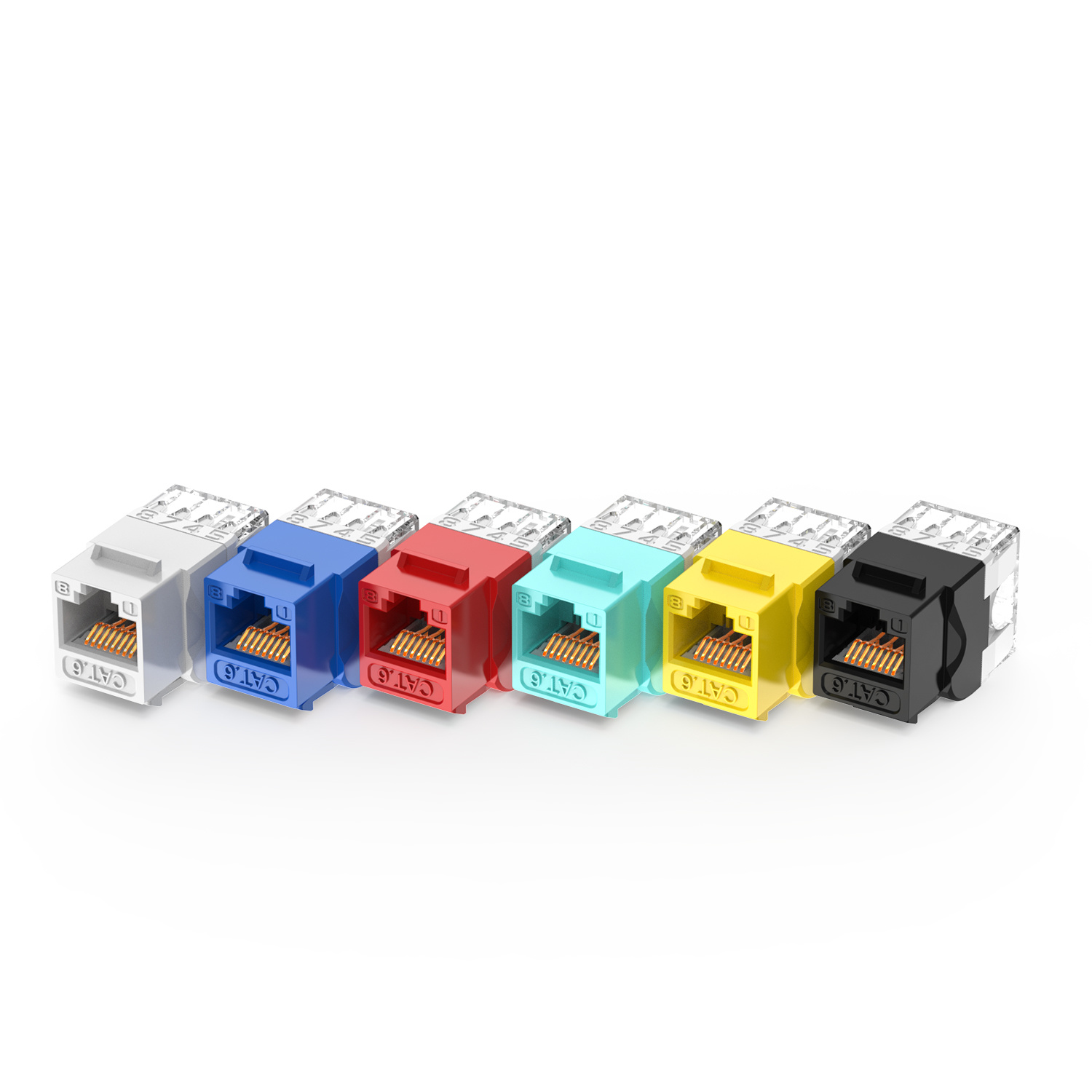

Color |
White, blue, black, yellow, red, green |

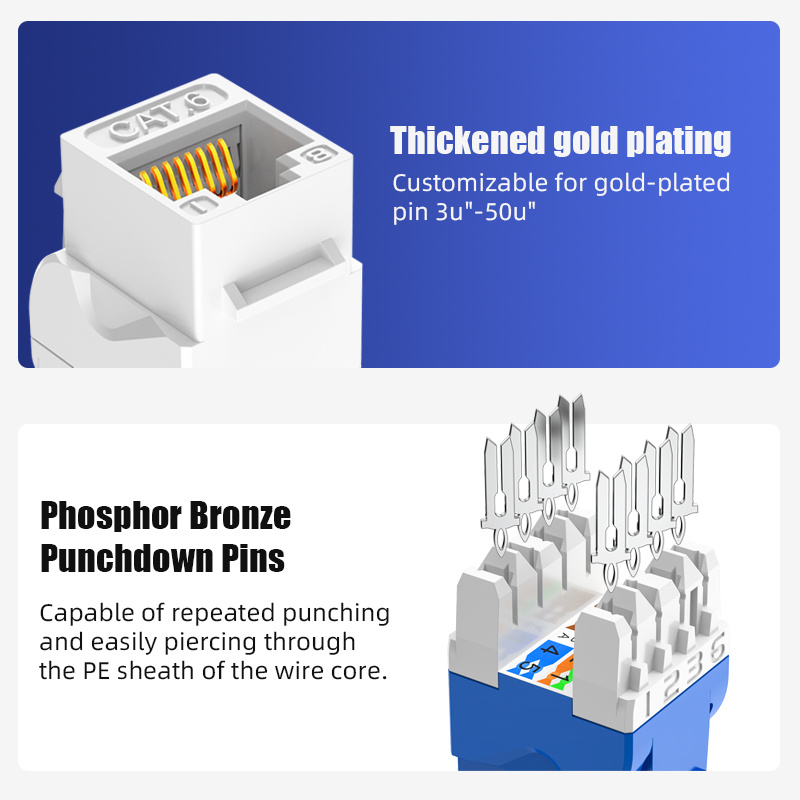

Gold plated |
3u"(default), 50u"(available) |
Standard |
International Organization for Standardization/IEC11801, TIA/EIA-568B.2-1, EN50173 |
Used |
Data center, work area, management room, equipment room, etc. |
Other |
LED light or dustproof door can be equipped. |
Specifications:
Technical characteristics |

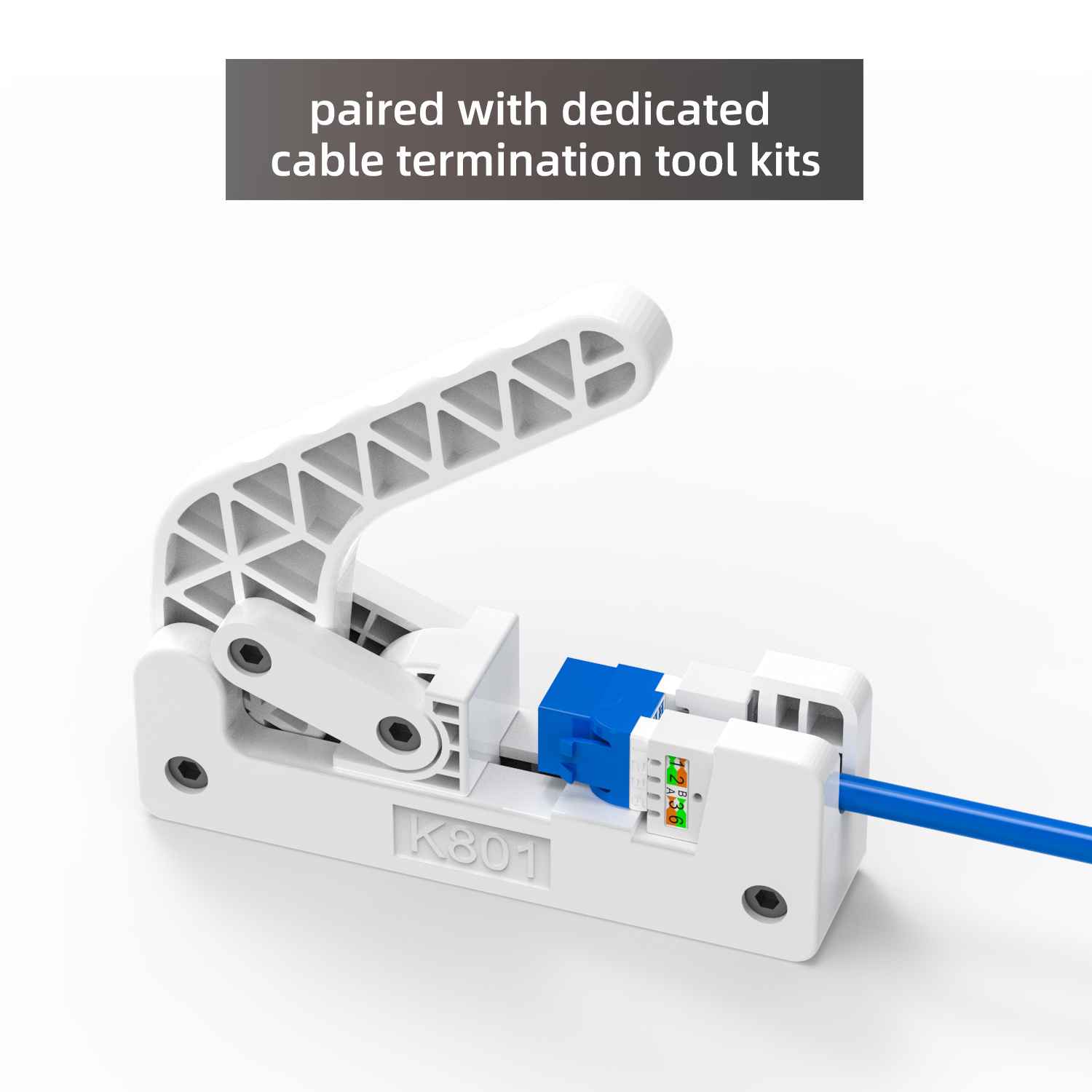

Plastic parts material: ComputerUL94V-0 • Standard 110 and LSA dual-purpose punching tools make operation more convenient. The IDC clamp designed with a45-degree angle ensures reliable cable connection. • According to ISO/IEC 11801 and TIA/EIA 568-B.2 Cat.6A standards, gold plated pins, IDC clips and internal PCB match well and provide optimal performance. • The entire pin is nickel-plated, and the connecting pin is gold-plated to prevent oxidation and have a long service life. • IDC clip: Tin-plated phosphor-bronze and nickel-plated, 250 times more reliable. |
Electrical characteristics |
DC resistance: ≤ 300mΩ Contact resistance: ≤ 20mΩ Dielectric strength: 1000V(AC750V)1min Insulation resistance: ≥ 1000MΩ |
Physical characteristics |
Nickel-plated phosphor bronze, gold-plated connector pins. IDC Clamp: Nickel plated tin plated phosphor-bronze pins, suitable for 22-26awg cable. Insertion duration: ≥ 750 times Punching duration: ≥ 250 times Jack housing plastic parts: UL94V-2, red, yellow, blue, green, black and other colors available. Termination cap material UL94V-2Working temperature: -25 ℃ ~ 60 ℃ |
Standard |
International Organization for Standardization/IEC11801 TIA/EIA-568B.2-1; • EN50173; • UL 94V-0; |
Application |

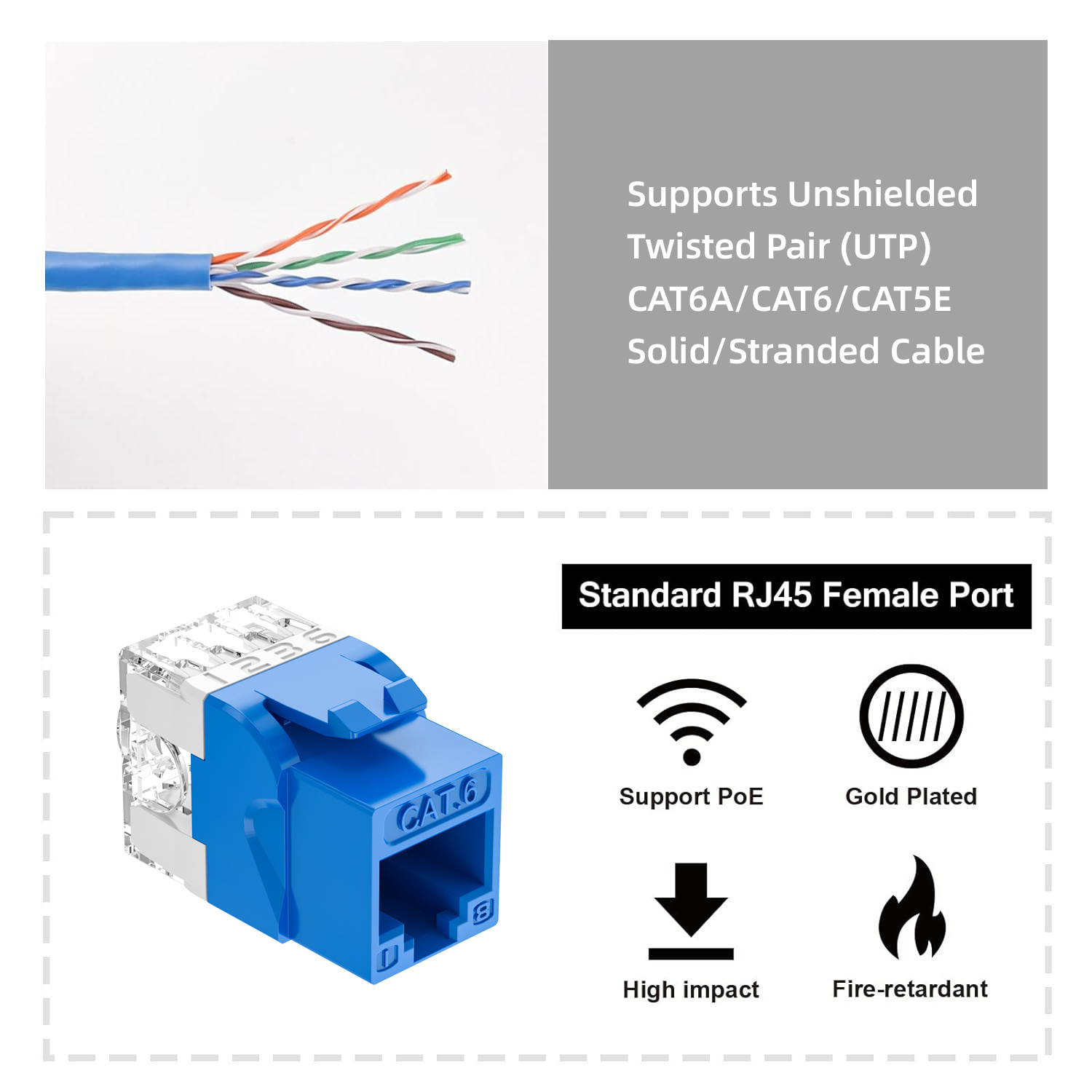

Structured cabling for transmitting data, voice, and video. Applying for category 6a and lower levels. Suitable for work areas, central rooms, management rooms, equipment rooms and subsystem applications. |
Quick Detail:
1.Keystone jack. Modular jack
2.Data center, working area, managing room , equipment room , etc
3. RJ45 available
Applications:
Network
Competitive Advantage:
1.More than 10 years OEM manufacturing experience
2.Implement industry 4.0 across our manufacturing process
3.100% self-design patent product for major category
4.Established more than 45 world-wide selling networks in 5 years
5.On-line and off-line marketing service
Keywords:
Keystone Jack
Patch Panel
RJ45 Connector
Faceplate
Patch Cord
Surface Mount Box
Cable Management
Networking Tool
Cabinets
Fiber Optic Patch Cable
Fiber Patch Panel
-

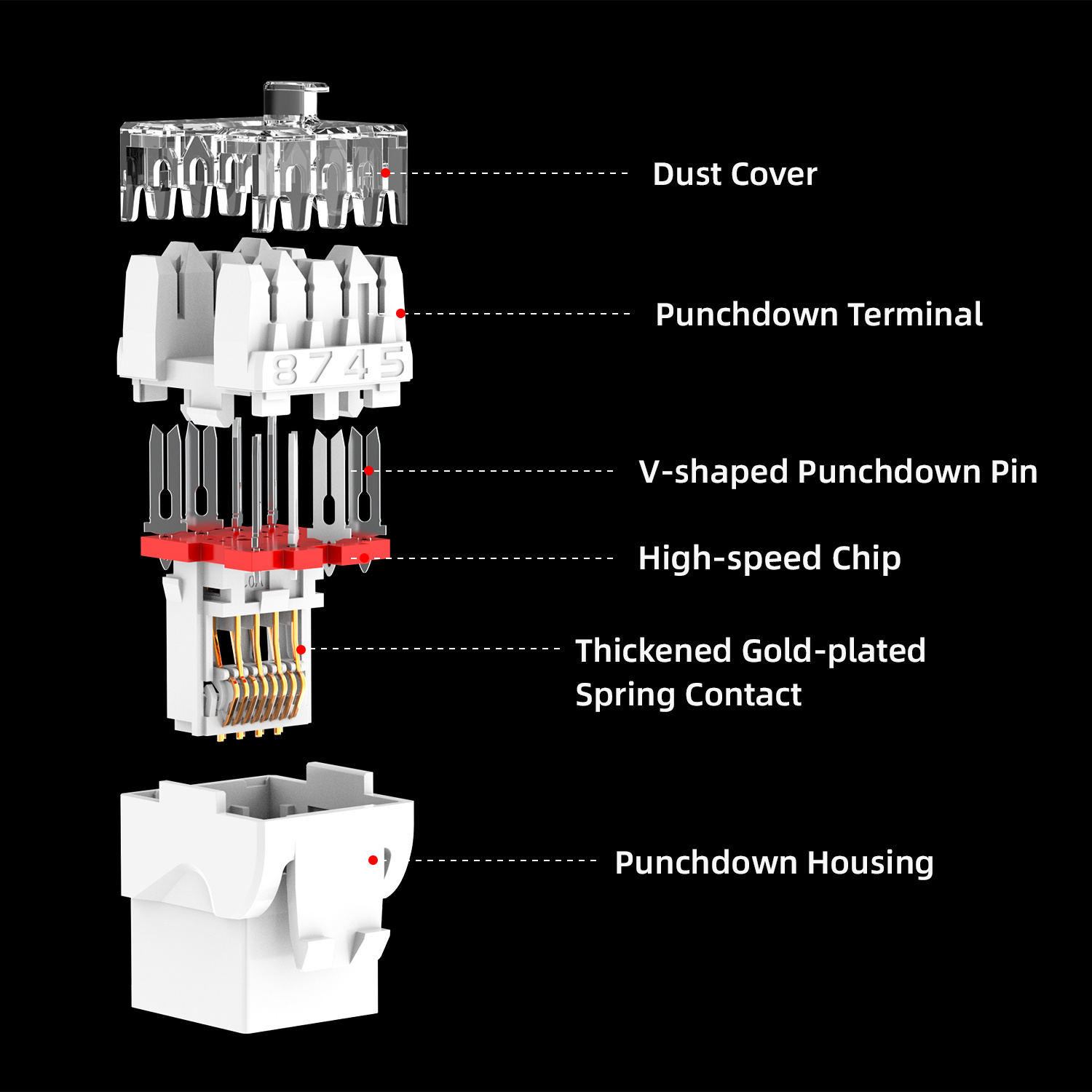

Structure
1. Visualized wiring sequence for easier and more accurate cable connections.
2. IDC staggered design and unique corner clips make installation more convenient, saving construction time.
3. Compact size makes it compatible with a wider range of network panels on the market. -
Fluke
Short-link test results (10m, 30m, 50m, 90m) all exceed 5db with strong stability.
-
POE
POE power supply supporting up to 90W, compatible with IEEE 802.3 af, IEEE 802.3 at, and IEEE 802.3 bt standards.
